点阵显示
Standard EPD Module List (2 Grayscale) | |||||||
Size | OutlineDimension(mm) | ActiveArea(mm) | Resolution | DPI | TCONInside | Interface | |
0.97" | 14.15(H)×30.00(V) | 10.648×22.264 | 88×184 | 210dpi | √ | SPI | |
1.27" | 18.7(H)×39.5(V) | 14.464×28.928 | 128×256 | 224dpi | √ | SPI | |
1.54" | 31.92(H)×35.44(V) | 27.72×27.72 | 152×152 | 130dpi | √ | SPI | |
1.54" | 31.92(H)×35.44(V) | 27.72×27.72 | 200×200 | 183dpi | √ | SPI | |
2.13" | 29.2(H)×59.2(V) | 23.8×48.55 | 122×250 | 130dpi | √ | SPI | |
2.66" | 36.6(H)×71.8(V) | 30.704×60.088 | 152×296 | 112dpi | √ | SPI | |
2.7" | 45.81(H)×70.4(V) | 38.19×57.29 | 176×264 | 112dpi | √ | SPI | |
2.9" | 38.1(H)×80.4(V) | 29.07×66.93 | 128×296 | 120dpi | √ | SPI | |
2.9" | 35.368(H)×79.98(V) | 29.568×67.584 | 168×384 | 144dpi | √ | SPI | |
3.52" | 54.4(H)×84.7(V) | 49.67×74.51 | 240×360 | 130dpi | √ | SPI | |
3.71" | 53(H)×92.99(V) | 47.04×81.536 | 240×416 | 130dpi | √ | SPI | |
4.2" | 77(H)×91(V) | 63.6×84.8 | 300×400 | 120dpi | √ | SPI | |
5.83" | 125.4(H)×99.5(V) | 118.78×88.22 | 648×480 | 139dpi | √ | SPI | |
7.5" | 170.2(H)×111.2(V) | 163.2×97.92 | 480×800 | 125dpi | √ | SPI | |
9.7" | 170.2(H)×111.2(V) | 163.2×97.92 | 960×674 | 121dpi | √ | SPI | |
10.2" | 224.0(H)×157.0(V) | 215.52×143.68 | 960×640 | 113dpi | √ | SPI | |
13.3" | 286.32(H)×212.26(V) | 275.52×195.16 | 960×680 | 88dpi | √ | SPI |
Standard EPD Module List (16 Gray) | ||||||
Size | Outline Dimension(mm) | Active Area(mm) | Resolution | DPI | Interface | Option |
4.3" | 74.6(H)×104(V) | 66×88 | 600×800 | 230dpi | Intel 80 | TP/FL/COVER LENS |
6" | 101.8(H)×138.4(V) | 90.581×122.368 | 758×1024 | 212dpi | Intel 80 | TP/FL/COVER LENS |

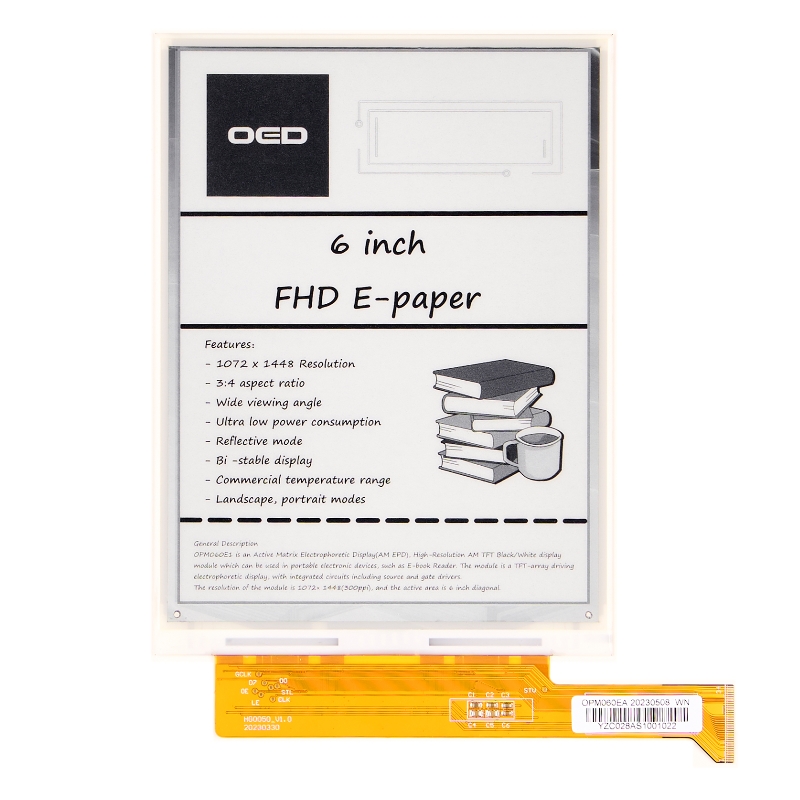

6" | 101.8(H)×138.4(V) | 90.584×122.356 | 1072×1448 | 300dpi | Intel 80 | TP/FL/COVER LENS |
7.8" | 127.6(H)×173.8(V) | 118.638×158.184 | 1404×1872 | 300dpi | Intel 80 | TP/FL/COVER LENS |
10.3"Landscape | 216.7(H)×174.4(V) | 209.664×157.248 | 1872×1404 | 227dpi | Intel 80 | TP/FL/COVER LENS |
10.3"Portrait | 165.8(H)×227.7(V) | 157.248×209.664 | 1404×1872 | 227dpi | Intel 80 | TP/FL/COVER LENS |
10.3" Landscape | 216.7(H)×174.4(V) | 209.664×157.248 | 2240×1680 | 271dpi | Intel 80 | TP/FL/COVER LENS |
10.3" Portrait | 165.8(H)×227.7(V) | 157.248×209.664 | 1680×2240 | 271dpi | Intel 80 | TP/FL/COVER LENS |
10.96" | 153(H)×245.86(V) | 147.6×236.16 | 1200×1960 | 206dpi | Intel 80 | TP/FL/COVER LENS |
31.2" | 697.2(H)×402.8(V) | 691.2×388.8 | 2560×1440 | 94dpi | Intel 80 | TP/FL/COVER LENS |
如需详细规格和资料,请联系我们。
